BMW R1200 Tool Kit:
Some have asked for a complete list of my tools in the kit I have displayed online a few times, so here it is:
Some have asked for a complete list of my tools in the kit I have displayed online a few times, so here it is:
This is the bare minimum kit you should have; asterisks on the list mark the minimum kit!

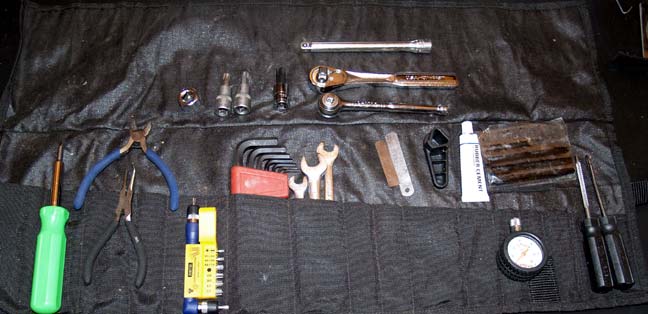

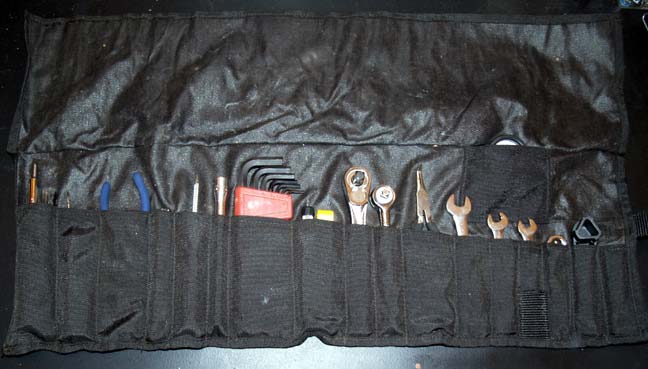

Here it is displayed.

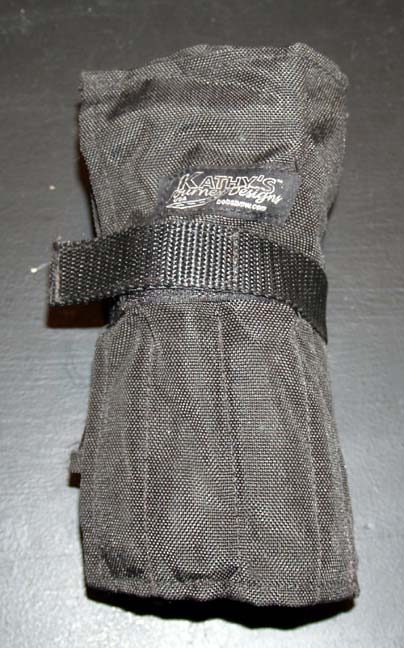

This is what it looks like rolled up.

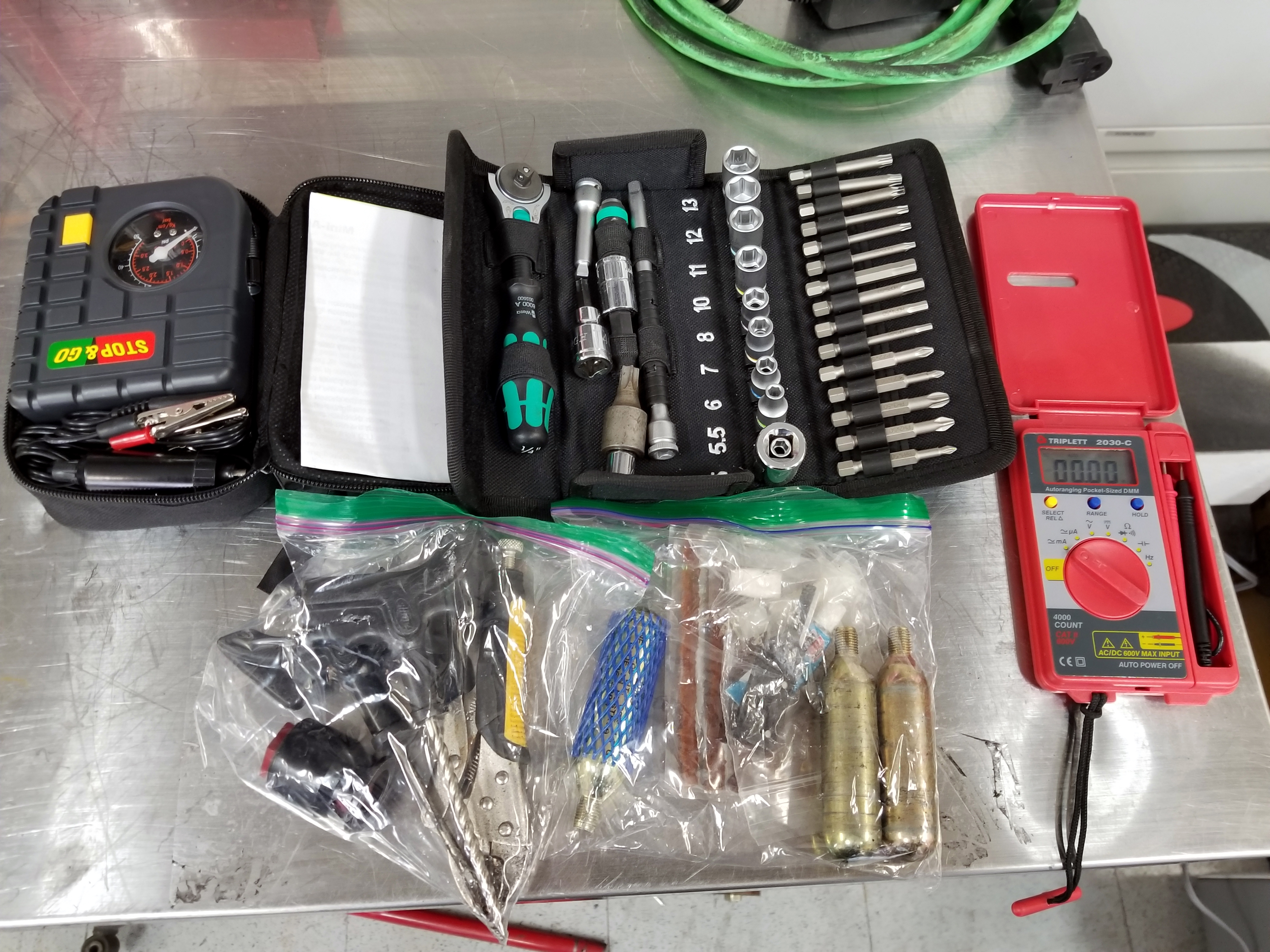

Here is what I carry; it represents everything on my list. I have some tools not specific to the R1200GS so that I can help anyone else if they need it.

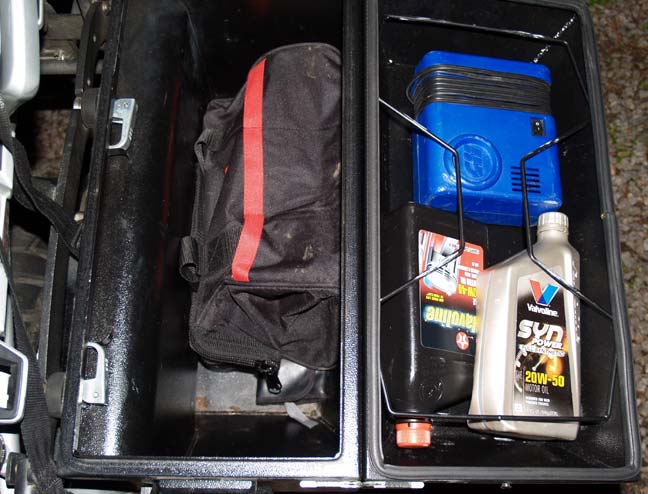

And here it is in my Jesse bag. As you can see it takes up about 1/3rd of the bag, and fits in nicely!
Here is the complete list of the tools I carry!
Tool list for the R1200GS, and also good for all R1200 series bikes.
Full Kit:
Vice Grips 8”
4-way combination screwdriver *
3” needle nose pliers *
3” side cutters *
10mm combination wrench
13mm combination wrench
2 tire spoons 9”
Set of metric feeler gauges
.006” (.152mm) and .012” (.305mm) feeler gauges *
Locking knife with 4” serrated blade
Flashlight (extra batteries)
Motolight lens removal tool
8*, 9, 10*, 11*, 12*, 13*, 14, 15, 16, 17mm open end wrench set
Torx wrench set T8, 10, 15, 20*, 25*, 27*, 30*, 40*, 45*, 50*, 55* socket set
Allen wrench set 4mm, 5mm, 6mm, 7mm, 8mm, 10mm sockets, Standard 2.5mm, 3mm*, 4mm*, 5mm*, 6mm*, 8mm*, 10mm
3/8” drive ratchet *
¼” ratchet *
Extensions 3/8” 3” and 6” *, ¼” 2.5” and 6” extensions
Sockets 7mm, 8mm, 10mm, 10mm deep, 13mm, 14mm, 17mm, spark plug socket *, 22mm front wheel socket/Allen *
Dental Pic set
Spark Plug gap tool
Oil filter wrench
Tire pressure gauge *
Spark plug wire remover
Leatherman
Tire plug kit (string) *
Compressor *
Extending mirror
Small standard screwdriver
Oil Cap tool *
Supplies:
Spare fuel hose clamps
Spare fuel hose splice
Assorted nuts and bolts
Assorted wire and connectors
Digital volt/ohm meter
Zip ties assorted
Electrical wire assorted sizes and lengths
Fuses
Lighter
Electrical tape
Stainless safety wire
Duct tape
* Indicates minimum tools for small kit
Jim
