R1200 36K Maintenance DVD:
This video had a very positive review in Motorcycle Consumer News, September 2007. See it here: Link
This video had a very positive review in Motorcycle Consumer News, September 2007. See it here: Link
This video covers all of the following categories, and is designed to allow you to complete all the requirements for maintaining your bike to BMW specifications. It is designed for ALL R1200 series motorcycles (Not including the R1200 cruisers), though it is centered around the R1200GS since that is what I have, and was available for filming.
Note: The DVD was designed around the R1200 series BMW from 04-06. It is still technically accurate for up to 09 bikes with a few exceptions. The Brakes on the newer bikes bleeed slightly differently, and the Final Drive fluid change is slightly different. You will likely be able to figure out the differences, but I have added updates on the "Updates to DVD's" section to cover these differences. I will also be adding an additional tutorial on removing the body pannels on the R1200RT to the same section in the future.
1. Removing Gas Tank (R1200GS, others similar)
2. Changing the Oil
3. Replace the Transmission Fluid

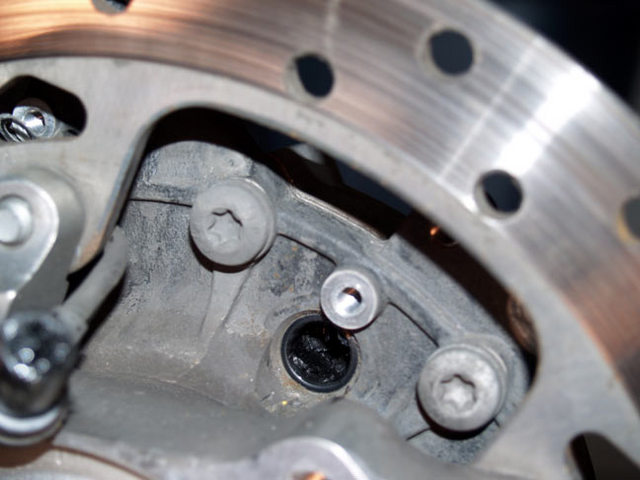

4. Changing the Final Drive Fluid

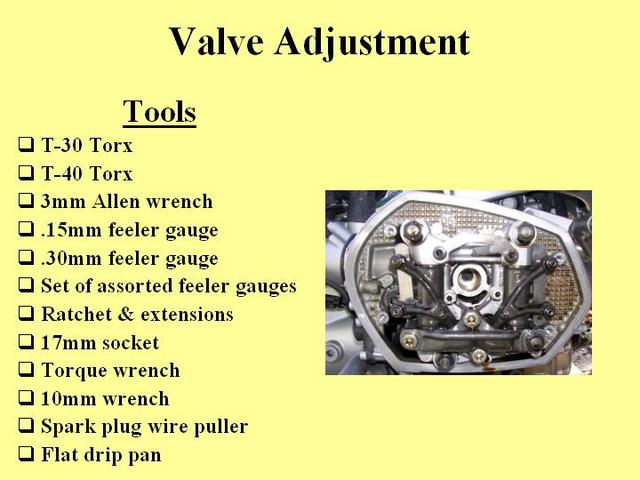

5. Valve Adjustment (See update in the Updates section)
6. Air Filter Change
7. Replace Alternator Belt
8. Brake Bleeding, servo-ABS system (See Updates section for 07-09 brakes)
9. Fuel Tank Install
10. Fault Code Read using the GS-911 Tool
11. Throttle Body Sync
12. Miscellaneous Checks
I have included the necessary tools, supplies and torque specifications to complete all the listed services. I have also added many helpful tips and notes to make this as simple as possible.
Consider this, the tool to remove and install the alternator belt is nearly $150, I teach you how to do it with no special tools, a savings of $125 right there! (Updates coming in the near future, see the updates section for more information.)
A typical 6K service will run you around $300-350, depending on location. The brake bleed/flush alone can run as high as $400.
What I did not include, since I felt they were self explanatory, was how to check your tires, and lights. I also did not include how to check spoke wheels since I did not have a spokes wheel bike available, they are available on the R1100/1150 DVD, I intend to add that to the pictorials section soon.
The DVD should assist those of you on the fence in deciding you CAN do these expensive services yourself, and save money for those all important farkles, and gas for riding!
This DVD is available for $25 plus $3 shipping to the US, $4 outside the US.
I will accept Paypal as this is my preferred method of payment. I will also accept money orders, and personal checks for US orders ONLY, and with a US bank only. See the Sales section for instructions.
The DVD is available for shipping immediately. It is produced into a master pressed format like a store bought movie which should be viewable on most DVD formats (NTSC), as well as virtually any lap-top computer. Many top line DVD players in Europe also play this format, though it is the North American Standard. See http://en.wikipedia.org/wiki/NTSC for locations in which this DVD will definitely work. Using PC based players, the MS Player works, orther may not.
We now have a repair DVD with some of the more common repairs. See it here: Link

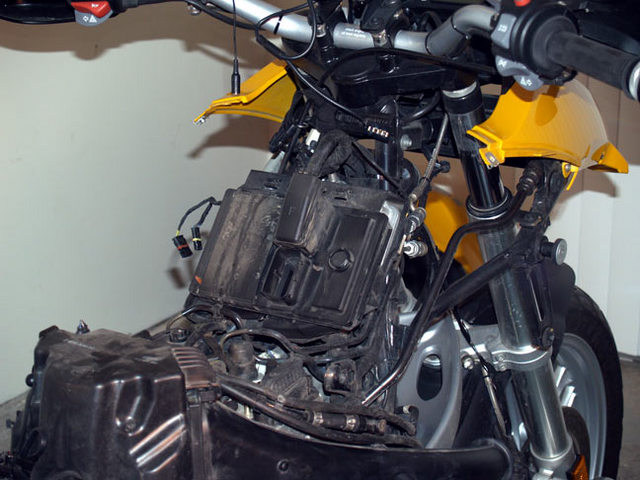

Here are a few samples:
Note: The DVD was designed around the R1200 series BMW from 04-06. It is still technically accurate for up to 09 bikes with a few exceptions. The Brakes on the newer bikes bleeed slightly differently, and the Final Drive fluid change is slightly different. You will likely be able to figure out the differences, but I have added updates on the "Updates to DVD's" section to cover these differences. I will also be adding an additional tutorial on removing the body pannels on the R1200RT to the same section in the future.
1. Removing Gas Tank (R1200GS, others similar)
2. Changing the Oil
3. Replace the Transmission Fluid
4. Changing the Final Drive Fluid
5. Valve Adjustment (See update in the Updates section)
6. Air Filter Change
7. Replace Alternator Belt
8. Brake Bleeding, servo-ABS system (See Updates section for 07-09 brakes)
9. Fuel Tank Install
10. Fault Code Read using the GS-911 Tool
11. Throttle Body Sync
12. Miscellaneous Checks
I have included the necessary tools, supplies and torque specifications to complete all the listed services. I have also added many helpful tips and notes to make this as simple as possible.
Consider this, the tool to remove and install the alternator belt is nearly $150, I teach you how to do it with no special tools, a savings of $125 right there! (Updates coming in the near future, see the updates section for more information.)
A typical 6K service will run you around $300-350, depending on location. The brake bleed/flush alone can run as high as $400.
What I did not include, since I felt they were self explanatory, was how to check your tires, and lights. I also did not include how to check spoke wheels since I did not have a spokes wheel bike available, they are available on the R1100/1150 DVD, I intend to add that to the pictorials section soon.
The DVD should assist those of you on the fence in deciding you CAN do these expensive services yourself, and save money for those all important farkles, and gas for riding!
This DVD is available for $25 plus $3 shipping to the US, $4 outside the US.
I will accept Paypal as this is my preferred method of payment. I will also accept money orders, and personal checks for US orders ONLY, and with a US bank only. See the Sales section for instructions.
The DVD is available for shipping immediately. It is produced into a master pressed format like a store bought movie which should be viewable on most DVD formats (NTSC), as well as virtually any lap-top computer. Many top line DVD players in Europe also play this format, though it is the North American Standard. See http://en.wikipedia.org/wiki/NTSC for locations in which this DVD will definitely work. Using PC based players, the MS Player works, orther may not.
We now have a repair DVD with some of the more common repairs. See it here: Link
Here are a few samples:

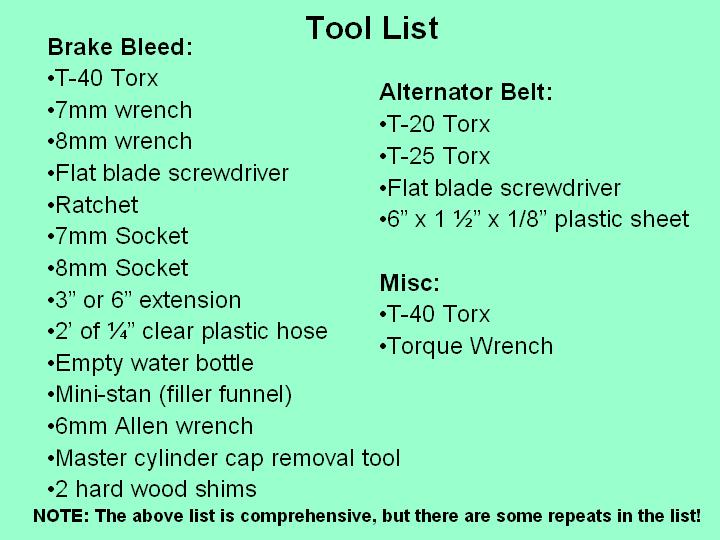

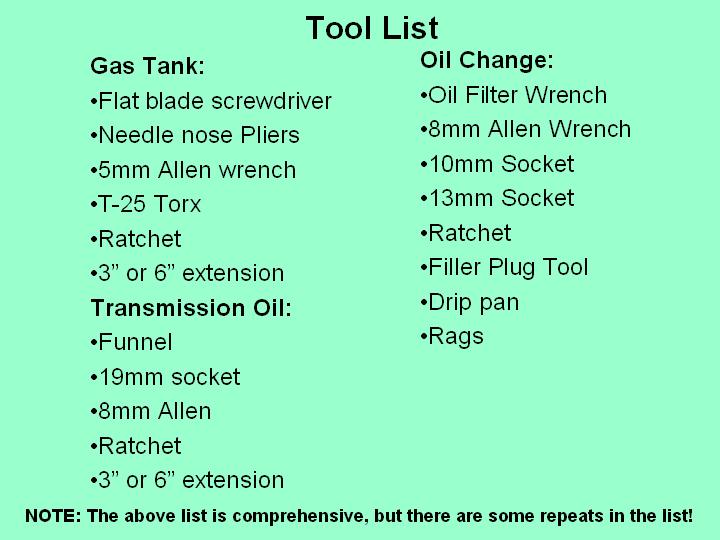

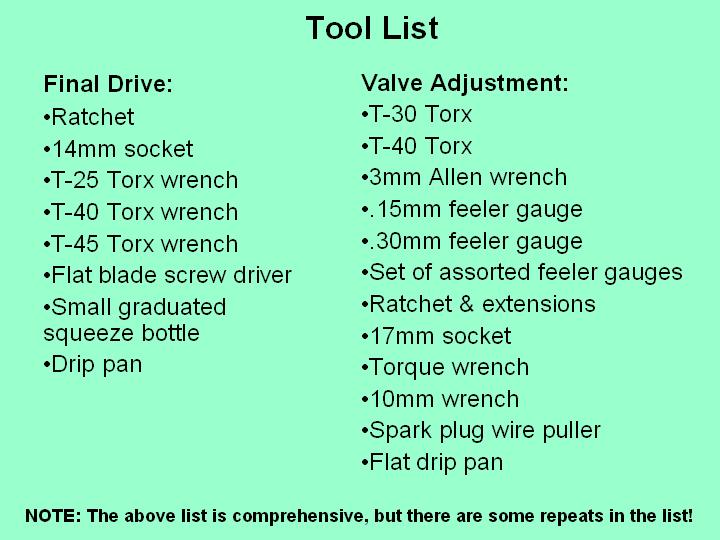

Tool Lists:
Keep in mind that though I am a professional trainer this is my first ever video for publication, so there may be a few small errors in it.
Thanks you all for your support of this effort, and for getting the ball rolling! I hope it is worth the effort, and not only saves you money, but helps you to be more independent in doing your own work.
Here is some information on how to build your own brake bleed Mini-Stan:
No need for the BMW cap. Order the following from McMaster-Carr (www.mcmaster.com ) 4005T5 1 Each Quick-drain Clear Polymethylpentene Funnel, 8 Oz Capacity, 4-7/16"top Od, 7-3/4"o’all Height 9545K27 1 Pack Tapered Push-in Round Rubbber Plug, Through Hole, Size 2, 13/64" Hole Size$12.11 before shipping.
Drill the stopper out a little, stick the funnel in it, stick the stopper into the fill hole with a twisting motion like you are threading it in.
Also now available from:
http://www.beemerboneyard.com/abs3funnel.html
NOTE: There was a change in the need to bleed all the ABS controller fitting in a couple of BMW service bulletins.. Specifically in Bulletin # 34 002 06 (019) dated Apr 2006
Maintenance:
For maintenance work, the brake fluid replacement in the control circuits is
now only to be carried out via the control circuit bleeding ports (see arrows in
pictures). It is no longer required to replace the fluid via the bleeding ports of
the metering cylinder and of the Integral circuit during routine brake fluid
replacement.
*Please see the Updates section for updates and corrections to the Video.
Caution: Although every effort was made to ensure the accuracy of the information contained in this DVD it was primarily designed to enhance your knowledge of the BMW R1200 series motorcycle. As such, it is not meant to replace the maintenance manual or to supply complete information about each procedure covered. Any damage done to a motorcycle or personal injury resulting from the use of the DVD is solely the responsibility of the user and not the maker or seller of the DVD. Please use the DVD as a reference only. Performing motorcycle maintenance can be dangerous so please take the proper precautions when attempting to perform your own service work. If you do not have the proper tools or mechanical ability to do this type of work it is best left to the professionals at your BMW Service Center.
